Position: Home/Products/Engineering Hydraulic/Electromagnet
Choose Your Products
Selected Options
Classified by Applied Platforms
Pressure Level
Flow Level
Access
Middle position
Emergency function
Turn to

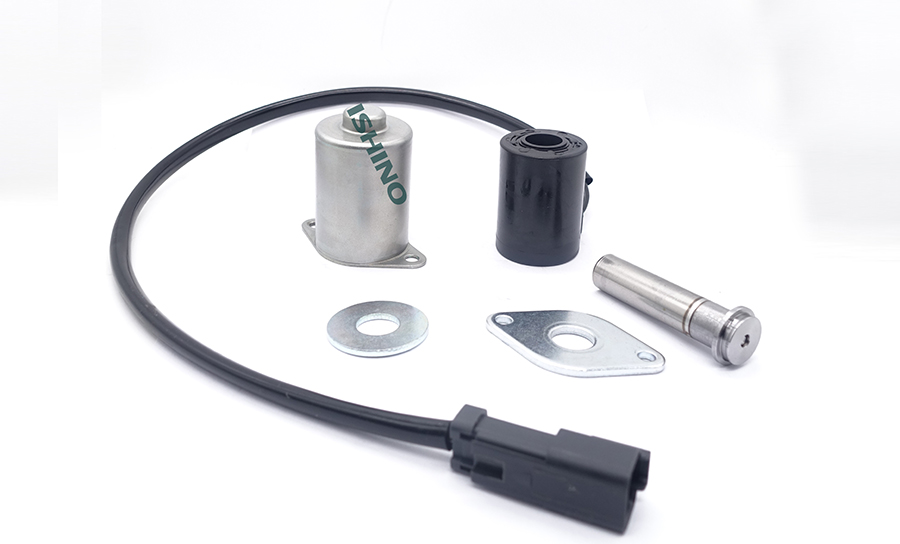

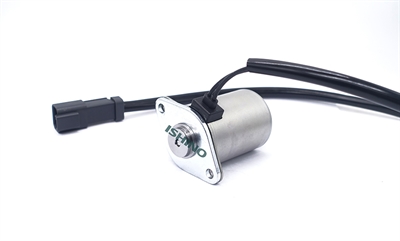

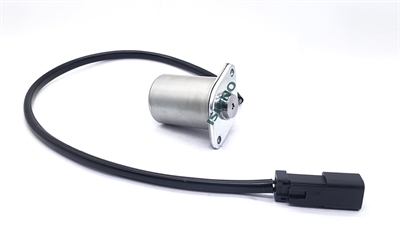

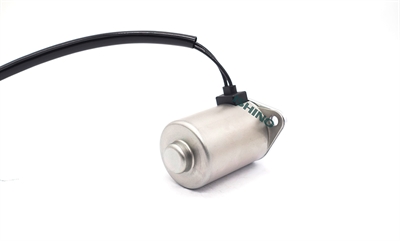

On-off Electromagnet

KN-20600

  • Fuel supply pressure(Pp)： Maximum flow rate:
  • OEM：








Order diesel@ishino.cn 86-750-2882555 Download
Product features

Steuermethode: Verwendet in On-Off gesteuerten Hydrauliksystemen

Kompatible Fahrzeuge:

KOMATSU PC100-6,PC200-6,PC300-6


Using vehicle models
Performance data
Working Voltage：
DC24V
Maximum Fuel Supply PressureP=6.8Mpa
Maximum Back Pressure：T=1Mpa
Usage Environment Temperature：-30℃ to 90℃
Usage Medium Temperature：-30℃ to 120℃
Usage Medium Viscosity Range：5~500cSt mineral oil or lubricating synthetic oil
Installation：Bolts fastening，tightening torque 4~6Nm
IP Functions：IP67K
Protective Properties：Waterproof, Explosion-proof, Anti-corrosion
Characteristic curve
Functional symbols
Outline Drawing


Drawing（Connector:01）


Drawing（Connector:02）


Drawing（Connector:03）


Drawing（Connector:04）


Drawing（Connector:05）


Drawing（Connector:06）

Installation chamber
Selection instructions

Selection instructions(9).jpg

Ordering Code

KN-2060-51130-0191203KN-2060-51130-0491206
KN-2060-51130-0291204KN-2060-51130-0591207
KN-2060-51130-0391205KN-2060-51130-0691208
