0Control Method：2-way, 3-port, proportional control
（Appliable for both direct proportional/inverse proportional）
Compatible vehicles：SK200-5、SK200-6
Driven by technology, survive by quality
Welcome to ISHINO official website

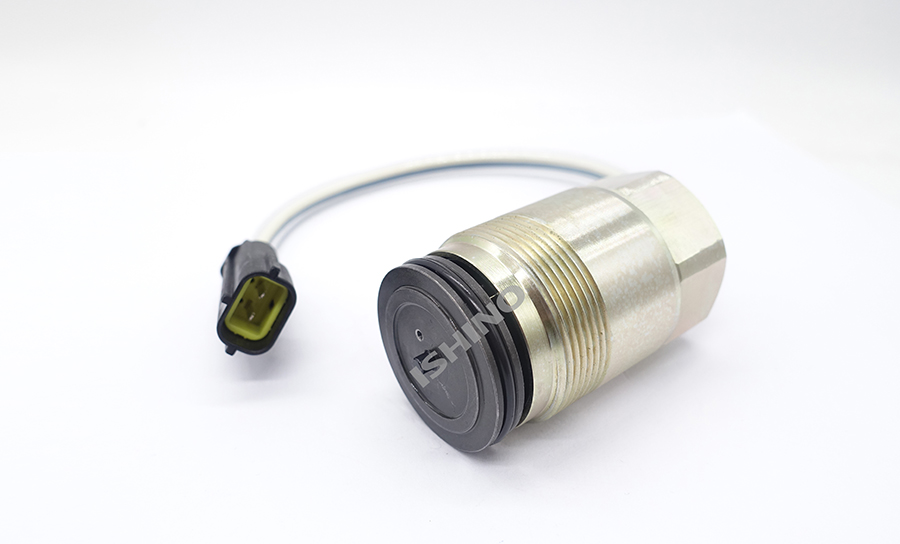

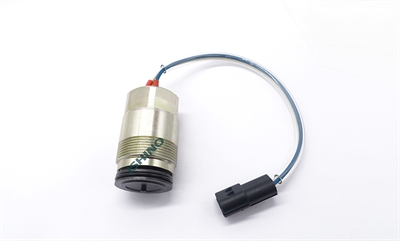

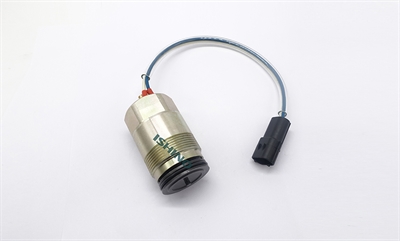

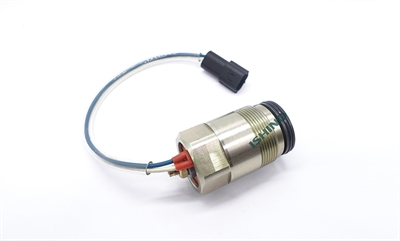

KS-5P14A
Control Method：2-way, 3-port, proportional control
（Appliable for both direct proportional/inverse proportional）
Compatible vehicles：SK200-5、SK200-6
| Working Voltage： | DC24V |
| Working Current： | 0~700mA（Recommend） |
| Drive Frequency： | 80~150Hz（Current Control） |
| Maximum Fuel Supply Pressure： | P=6.8Mpa |
| Maximum Back Pressure： | T=1Mpa |
| Coil： | 24V（Environment Temperature 25℃） |
| Usage Environment Temperature： | -30℃ to 90℃ |
| Usage Medium Temperature： | -30℃ to 120℃ |
| Usage Medium Viscosity Range： | 5~500cSt mineral oil or lubricating synthetic oil |
| Installation： | Screw cartridge, tightening torque 25~30Nm |
| IP Functions： | IP67K |
| Protective Properties： | Waterproof, Explosion-proof, Anti-corrosion |
Ordering Code
| KS-5P14A-C02 | 91060 |
Consult the factory for other optional models
