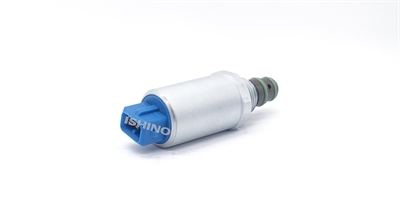

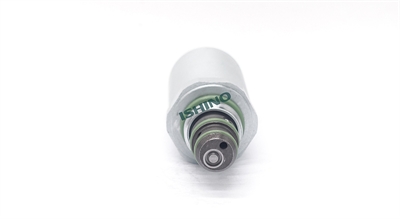

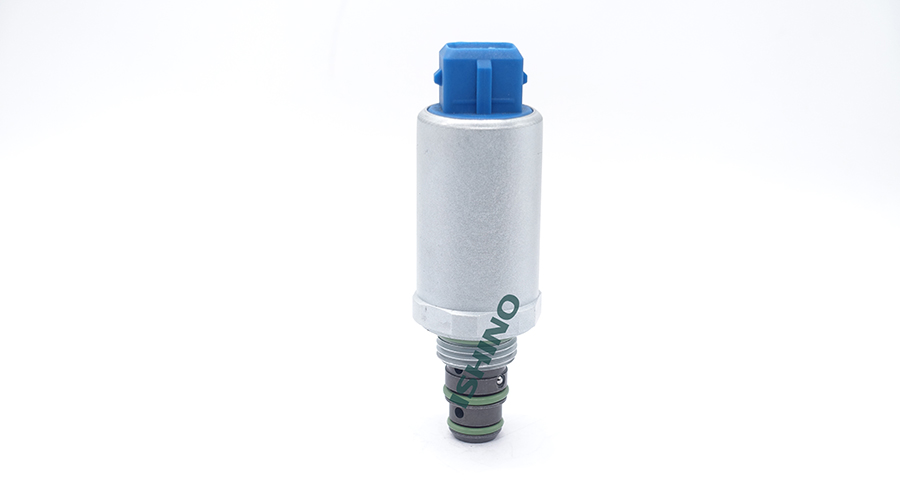

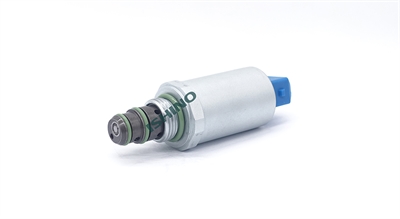

RD-2KC3X
Control Method：2-way, 3-port, on-off control
Power off：fuel flows from port A to port T；
Power on：fuel flows from port P to port A
Application：on-off control device
| Working Voltage： | DC12V/DC24V《Optional》 |
| Working Current： | 0~1.8A/0~0.8A《Optional》 |
| Drive Frequency： | 100~200Hz |
| Maximum Working Pressure： | P=100bar、PA=100bar |
| Maximum Back Pressure： | PT＝30bar |
| Maximum Flow： | 2L/min(when △P 5bar) |
| Adjusting Pressure Range： | 0~30bar; |
| Response Time： | T open≤40ms; T close≤20ms |
| Internal Leakage： | ≤50ml/min（P=50bar） |
| Usage Environment Temperature： | -30℃ to 90℃ |
| Usage Medium Temperature： | -30℃ to 80℃ |
| Usage Medium Viscosity Range： | 5~500cSt mineral oil or lubricating synthetic oil |
| Installation： | Screw cartridge, tightening torque 20-23Nm |
| Coil： | 12V/24V "optional", consult the factory for detailed parameters |
| 12V/24V "optional", consult the factory for detailed parameters： | IP69K |
| Protective properties： | waterproof, anti-corrosion |
Ordering Code
| RD-2KC33-100-12-J-F-1-J | 96100 |
| RD-2KC35-100-24-J-F-1-J | 96006 |
Normally open and Deutsch plug models to be updated
