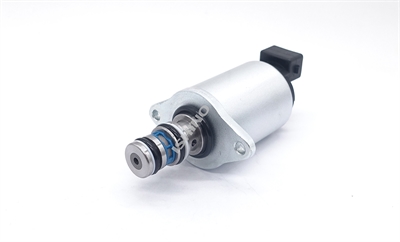

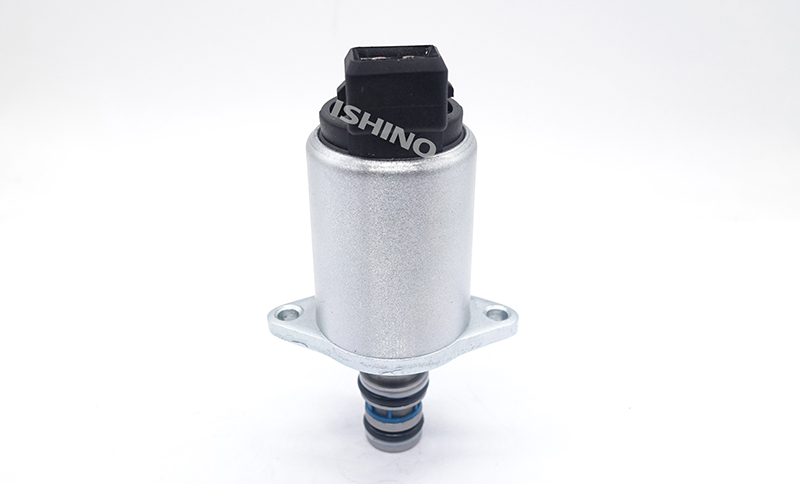

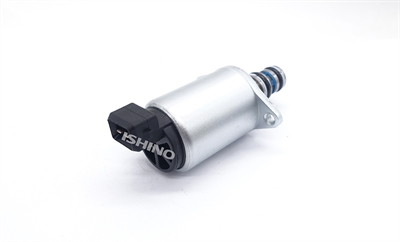

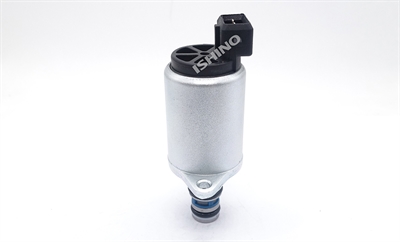

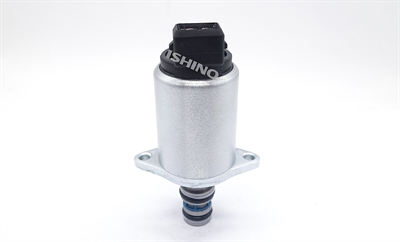

TP-42BD
Control Method：2-way, 3-port, proportional control
Power off：fuel flows from port A to port T
Power on：fuel flows from port P to port A
When port A pressure exceeds MAX.pressure, fuel spills from port T
Application：Proportional pressure reduction control devices
| Working Voltage： | DC12V/DC24V《Optional》 |
| Working Current： | 0~1500mA（12V）/0~750mA（24V）《Optional》 |
| Drive Frequency： | 150Hz（Current Control） |
| Maximum Flow： | 2.5~5L/min |
| Maximum Fuel Supply Pressure： | P=350bar |
| Maximum Fuel Return Pressure： | T=30bar |
| Adjusting Pressure Range： | A=0~20bar/0~25bar/0~32bar《Optional》 |
| Response Time： | T open≤50ms; T close≤50ms |
| Hysteresis： | ≤4% |
| Linearity： | ≤5% |
| Pressure Characteristics： | see ” Functional Chart”（The test data is P port pressure 40bar） |
| Flow Characteristics： | see ” Functional Chart” |
| Internal Leakage： | ＜50ml/min |
| Port P Filter Specifications： | 125μm |
| Usage Environment Temperature: | -30℃ to 90℃ |
| Usage Medium Temperature： | -30℃ to 120℃ |
| Usage Medium Viscosity Range： | 5~500cSt mineral oil or lubricating synthetic oil |
| Installation： | Bolts fastening，tightening torque 4~6Nm |
| Coil： | 12V/24V "optional", consult the factory for detailed parameters |
| IP Functions： | IP69K |
| Protective Properties: | Waterproof, Explosion-proof, Anti-corrosion |
Drawing(Connector:Deutsch)
Drawing(Connector:AMP Junior)
Drawing(Connector:AMP Junior,with Emergency Function)
Ordering Code
| TP-42BD-20-12-J-H-0 | 96076 | TP-42BD-32-12-D-H-0 | 96081 | |
| TP-42BD-20-12-D-H-0 | 96077 | TP-42BD-32-24-J-H-0 | 96086 | |
| TP-42BD-20-24-J-H-0 | 96082 | TP-42BD-32-24-D-H-0 | 96087 | |
| TP-42BD-20-24-D-H-0 | 96083 | TP-42BD-20-12-J-H-1 | 96425 | |
| TP-42BD-25-12-J-H-0 | 96078 | TP-42BD-20-24-J-H-1 | 96426 | |
| TP-42BD-25-12-D-H-0 | 96079 | TP-42BD-25-12-J-H-1 | 96427 | |
| TP-42BD-25-24-J-H-0 | 96084 | TP-42BD-25-24-J-H-1 | 96428 | |
| TP-42BD-25-24-D-H-0 | 96085 | TP-42BD-32-12-J-H-1 | 96429 | |
| TP-42BD-32-12-J-H-0 | 96080 | TP-42BD-32-24-J-H-1 | 96430 |
