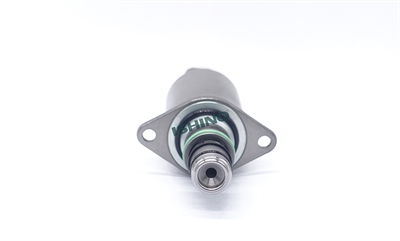

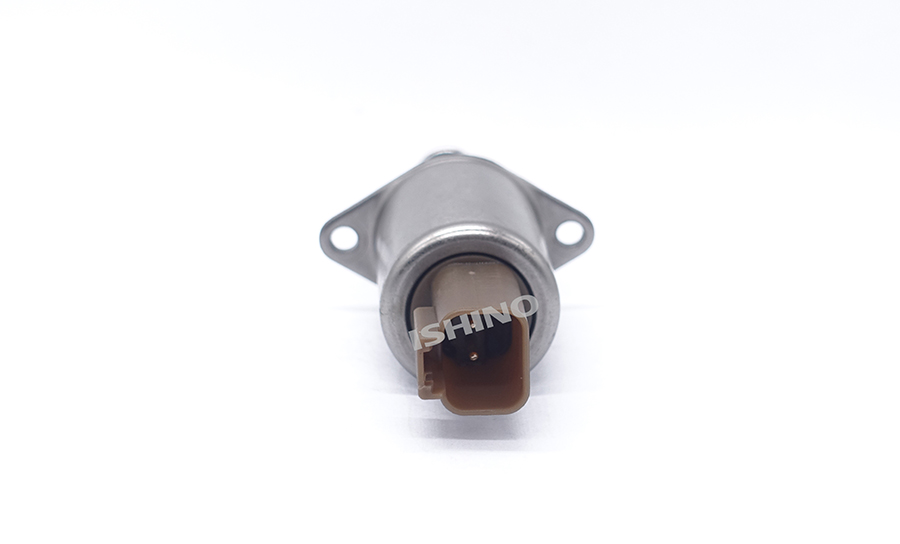

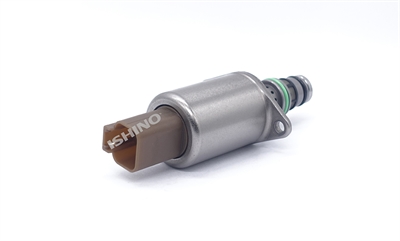

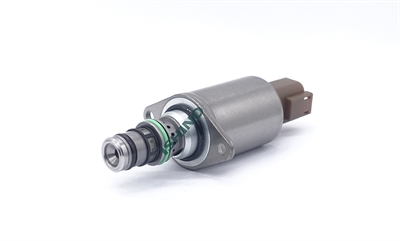

TP-54AK
Control Method：2-way, 3-port, proportional control
Power off：fuel flows from port A to port T
Power on：fuel flows from port P to port A
When port A pressure exceeds MAX.pressure, fuel spills from port T
Application：Proportional pressure reduction control devices
| Working Voltage： | DC12V/DC24V《Optional》 |
| Working Current： | 0~1500mA（12V）/0~750mA（24V）《Optional》 |
| Control Method(Current Control)： | 1000Hz+Vibration Signal/（Frequency：120Hz/Peak Value：200mAPeak Value） |
| Maximum Flow： | 10L/min（pressure difference between fuel inlet and fuel outlet is 6bar） |
| Maximum Fuel Supply Pressure： | P=50bar |
| Maximum Fuel Return Pressure： | T=30bar |
| Adjusting Pressure Range： | A=0~30bar |
| Response Time： | T open≤50ms; T close≤50ms |
| Hysteresis： | ≤3% |
| Linearity： | ≤4% |
| Pressure Characteristics： | see ” Functional Chart”（The test data is P port pressure 41bar） |
| Flow Characteristics： | see ” Functional Chart” |
| Internal Leakage： | ＜50ml/min |
| Port P Filter Specifications: | 140μm |
| Usage Environment Temperature： | -30℃ to 90℃ |
| Usage Medium Temperature： | -30℃ to 120℃ |
| Usage Medium Viscosity Range： | 5~500cSt mineral oil or lubricating synthetic oil |
| Installation： | Bolts fastening，tightening torque 4~6Nm |
| Coil Resistance： | 5.5±0.3Ω（12V）/8.5±0.3Ω（24V）/22±0.5Ω（24V）(measured Temp.25℃)《Optional》 |
| IP Functions： | IP69K |
| Protective Properties： | Waterproof, Explosion-proof, Anti-corrosion |
Drawing(Connector:Deutsch)
Drawing(Connector:AMP Junior)
Ordering Code
| TP-54AK-30-12-J-5-F-0 | 96401 | TP-54AK-30-24-D-22-F-0 | 96033 | |
| TP-54AK-30-12-D-5-F-0 | 96032 | TP-54AK-30-24-J-8.5-F-0 | 96402 | |
| TP-54AK-30-24-J-22-F-0 | 96404 | TP-54AK-30-24-D-8.5-F-0 | 96403 |
