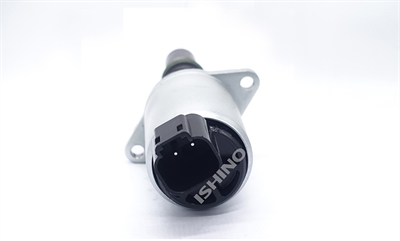

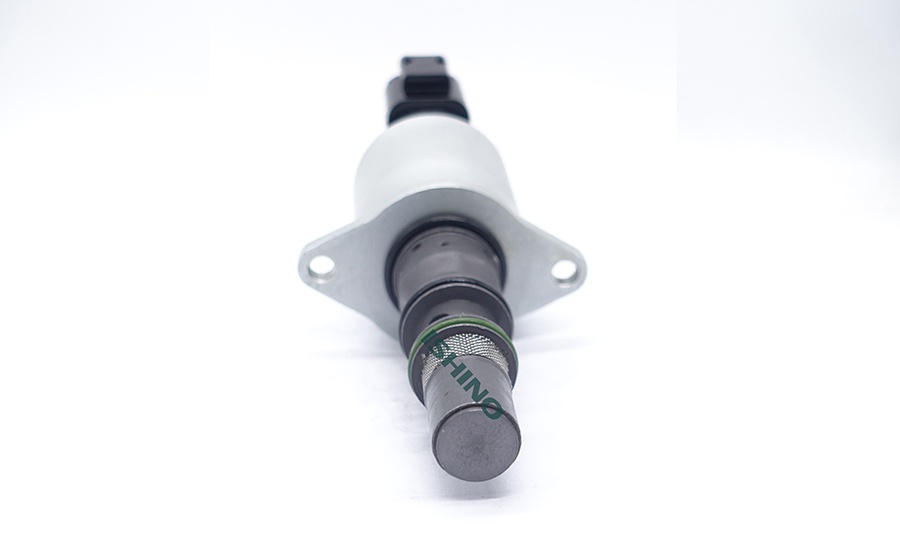

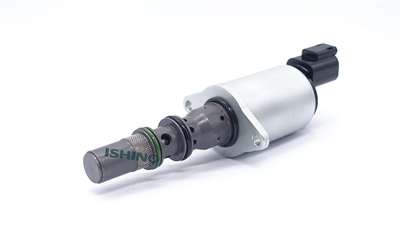

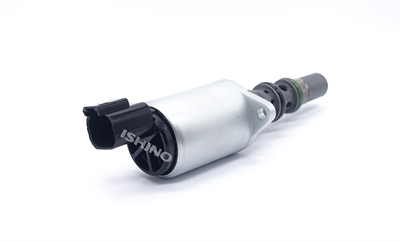

TP-91BH
Control Method：2-way, 3-port, proportional control
Power off：fuel flows from port A to port T
Power on：fuel flows from port P to port A
When port A pressure exceeds MAX.pressure, fuel spills from port T
Application：Proportional pressure reduction control devices
| Working Voltage： | DC12V/DC24V《Optional》 |
| Working Current： | 0~1000mA（12V）/0~500mA（24V）《Optional》 |
| Control Method(Current Control)）： | 600Hz（Recommend） |
| Maximum Flow： | 35L/min(pressure difference between fuel inlet and fuel outlet is 6bar） |
| Maximum Fuel Supply Pressure： | P=32bar |
| Maximum Fuel Return Pressure： | T=10bar |
| Adjusting Pressure Range： | A=0~30bar |
| Response Time： | T open ≤50ms；T close ≤50ms |
| Hysteresis： | ≤2% |
| Linearity： | ≤4% |
| Pressure Characteristics： | see ” Functional Chart”（The test data is P port pressure 32bar） |
| Flow Characteristics： | see ” Functional Chart” |
| Internal Leakage： | ＜1L/min |
| Port P Filter Specifications： | 320μm |
| Usage Environment Temperature: | -30℃ to 90℃ |
| Usage Medium Temperature： | -30℃ to 105℃ |
| Usage Medium Viscosity Range： | 5~500cSt mineral oil or lubricating synthetic oil |
| Installation： | Bolts fastening，tightening torque 4~6Nm |
| Coil： | 12V/24V "optional", consult the factory for detailed parameters |
| IP Functions： | IP69K |
| Protective Properties： | Waterproof, Explosion-proof, Anti-corrosion |
Ordering Code
| TP-91BH-30-D-F-0 | 96031 |
| TP-91BH-30-D-F-0 | 96414 |
