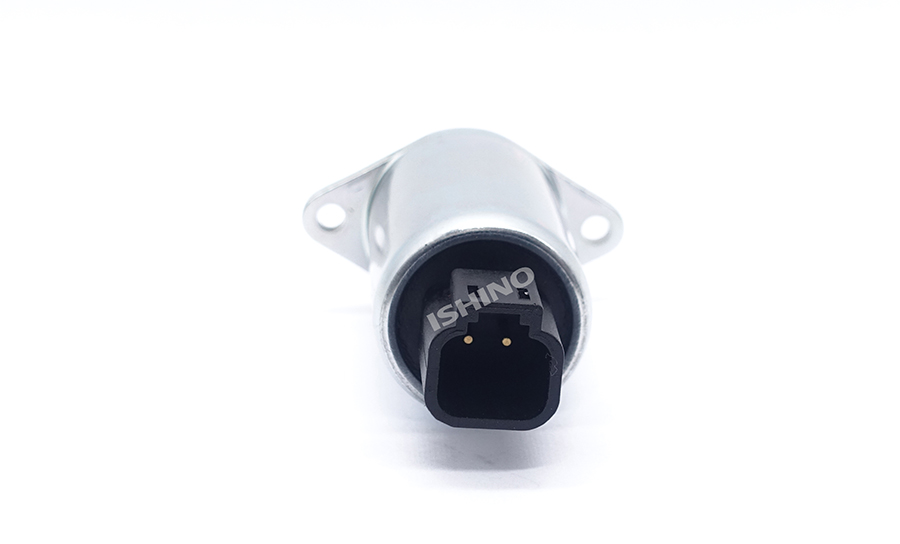

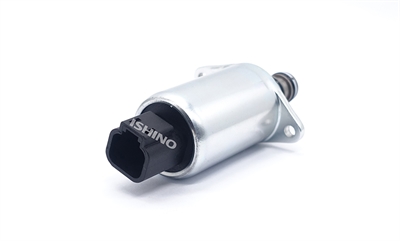

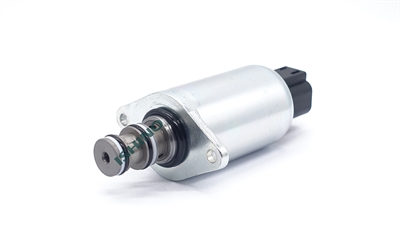

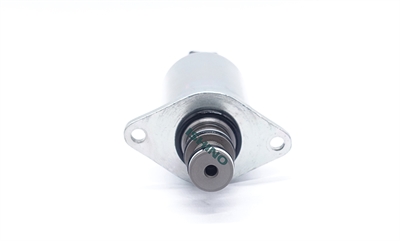

CP-43CH
Control Method：2-way, 3-port, proportional control
Power off：fuel flows from port A to port T
Power on：fuel flows from port P to port A
Application：Proportional pressure reduction control devices
| Working Voltage： | DC12V/DC24V《Optional》 |
| Working Current： | 0~1500mA（12V）/0~750mA（24V）《Optional》 |
| Drive Frequency： | 100Hz~200Hz（Current Control） |
| Maximum Fuel Supply Pressure： | 350bar |
| Flow： | 4L/min（@△8bar） |
| Adjusting Pressure Range： | 0~25bar/0~30bar《Optional》 |
| Response Time： | T open ≤30ms；T close ≤30ms |
| Hysteresis： | ≤4% |
| Linearity： | ≤5% |
| Pressure Characteristics： | see ” Functional Chart”（The test data is P port pressure 50bar） |
| Internal Leakage（Power off）: | ＜35ml/min（@350bar） |
| Usage Environment Temperature： | -30℃ to 90℃ |
| Usage Medium Temperature： | -30℃ to 100℃ |
| Usage Medium Viscosity Range： | 5~500cSt mineral oil or lubricating synthetic oil |
| Installation： | Bolts fastening，tightening torque 4~6Nm |
| Coil： | 24V / 12V(measured Temp.20℃)《Optional》 |
| IP Functions： | IP69K |
| Protective Properties： | Waterproof, Explosion-proof, Anti-corrosion |
Ordering Code
| CP-43CH-25-24-DT-H-1 | 96418 | CP-43CH-25-12-DT-H-1 | 96901 |
Consult the factory for other optional models
