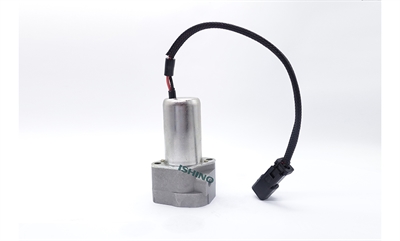

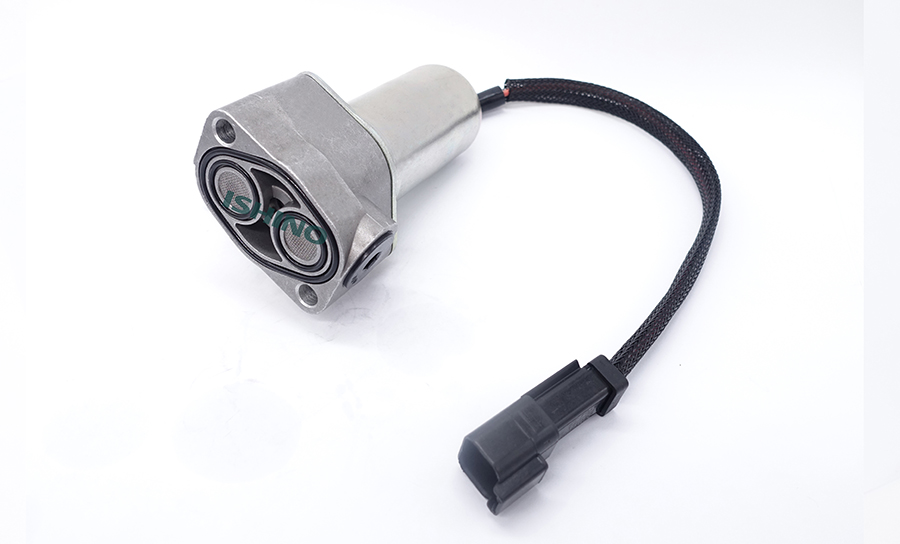

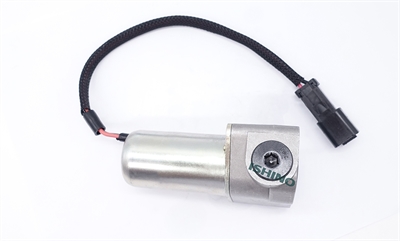

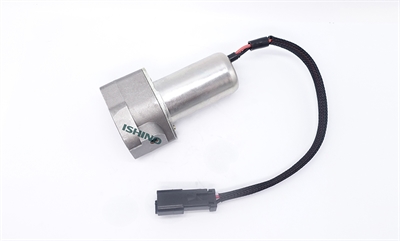

AP-E-702
Control Method：2-way, 3-port, on-off control；
Power off：fuel flows from port A to port T；
Power on：fuel flows from port P to port A；
Application：Proportional pressure reduction control devices
| Working Voltage： | DC24V |
| Working Current： | 0~700mA（24V） |
| Drive Frequency： | 100Hz~200Hz（Current Control） |
| Maximum Fuel Supply Pressure： | 50bar |
| Flow： | 6.5L/min |
| Adjusting Pressure Range： | 0~25bar |
| Response Time： | T open ≤30ms；T close ≤30ms |
| Hysteresis： | ≤5% |
| Linearity： | ≤5% |
| Pressure Characteristics： | see ” Functional Chart”（The test data is P port pressure 50bar） |
| Internal Leakage（Power off）: | ＜30ml/min（@50bar） |
| Usage Environment Temperature： | -30℃ to 90℃ |
| Usage Medium Temperature： | -30℃ to 100℃ |
| Usage Medium Viscosity Range： | 5~500cSt mineral oil or lubricating synthetic oil |
| Installation： | Bolts fastening，tightening torque 4~6Nm |
| Coil： | 24V(measured Temp.25℃) |
| IP Functions： | IP69K |
Order Code
| AP-E-702-21-07610 | 91006C |
