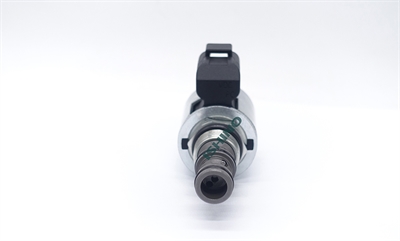

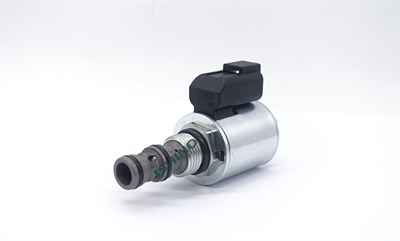

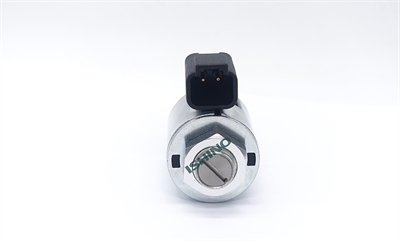

Electro Proportional Pressure Control Valve

Product features

Control Method：2-way, 3-port, proportional control

Power off：fuel flows from port ① to port ③

Power on：fuel flows from port ① to port ②

When port ① pressure exceeds MAX.pressure, fuel spills from port ③

Application：Proportional pressure reduction control devices

Using vehicle models

Performance data

Working Voltage：	DC12V/DC24V《Optional》
Working Current：	1200mA（12V）/650mA（24V）《Optional》
Drive Frequency：	200Hz
Maximum Fuel Port Pressure：	207bar
Maximum Flow：	4L/min（when △P 6bar，port ① to port ③）
Adjusting Pressure Range：	0~26bar(0~377psi)
Response Time：	T open ≤30ms；T close ≤15ms
Hysteresis：	≤3%
Linearity：	≤3%
Pressure Characteristics：	see ” Functional Chart”
Flow Characteristics：	see ” Functional Chart”
Internal Leakage：	30~80ml/min
Usage Environment Temperature：	-40℃ to 70℃
Usage Medium Temperature:	-40℃ to 120℃
Usage Medium Viscosity Range:	5~500cSt mineral oil or lubricating synthetic oil
Installation:	Screw cartridge, tightening torque 27.1Nm（max）
Coil:	12V/24V "optional"
IP Functions:	IP69K

Characteristic curve

Functional symbols

Outline Drawing


Drawing(Connector ER)


Drawing(Connector EY)

Installation chamber


Selection instructions

Selection instructions

HP-E0833-26-24-ER-H-0	96001		HP-E0833-26-12-EY-H-0	96253
HP-E0833-26-12-ER-H-0	96252		HP-E0833-26-24-EY-H-0	96254

Equipped with emergency function, other plug models to be updated
